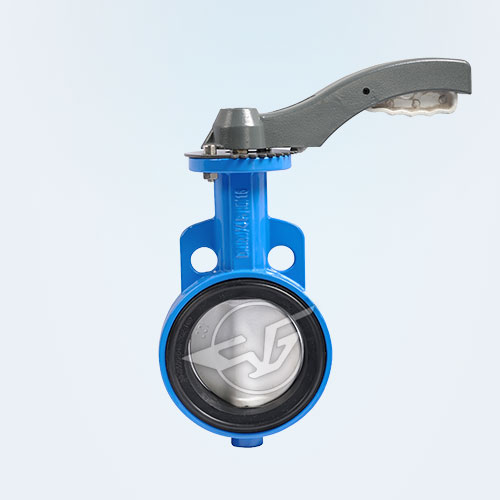

Aluminum pinless handle butterfly valve
Nominal diameter: DN50-800mm
Nominal pressure: PN0.6 ~ 1.6MPa
Temperature: ≤80 ~ 120 ℃
Medium: air, water, water, steam, gas, oil, etc.
Main material: ductile iron, steel, alloy steel, stainless
drive forms: manual, worm gear, gas transmission, electric transmission
design criteria: GB / T2238-1989
flange size: GB / T9113.1-2000; GB / T9115.1-2000 ; JB78
Structure Length: GB / T12221-1989
Pressure Test: GB / T13927-1992; JB / T9092-1999
【Aluminum alloy handleless butterfly valve D71X-Product Description】
Aluminum alloy pinless handle butterfly valve D71X This product is made of rubber sealing butterfly valve and carbon steel or stainless steel valve plate and valve stem. For temperature ≤ 80 ~ 120 ℃ Such as food, medicine, chemicals, petroleum, electricity, textile, paper and other water supply and drainage, gas pipeline for regulating the role of flow and interception of the media.
【Aluminum alloy handleless butterfly valve D71X - Features】
1, novel design, reasonable, unique structure, light weight, quick opening and closing.
2, torque is small, easy to operate, labor-saving smart.
3, can be installed in any location, easy maintenance.
4, seals can be replaced, sealing performance and reliable two-way seal to achieve zero leakage.
5, anti-aging sealing material, resistance to weak corrosion, long life and other characteristics.
| DN(mm) | A | B | C | D1 | L | n-Φ | K | E | 4-Φ1 | Φ2 | G | 重量WT（kg) |
| 50 | 140 | 80 | 43 | 125 | 32 | 4-19 | 77 | 57.15 | 4-6.7 | 12.6 | 100 | 3.34 |
| 65 | 152 | 89 | 46 | 145 | 32 | 4-19 | 77 | 57.15 | 4-.67 | 12.6 | 120 | 3.94 |
| 80 | 159 | 95 | 46 | 160 | 32 | 8-19 | 77 | 57.15 | 4-.67 | 12.6 | 127 | 4.05 |
| 100 | 178 | 114 | 52 | 180 | 32 | 8-19 | 92 | 69.85 | 4-10.3 | 15.77 | 156 | 5.48 |
| 125 | 190 | 127 | 56 | 210 | 32 | 8-19 | 92 | 69.85 | 4-10.3 | 18.92 | 190 | 7.66 |
| 150 | 203 | 139 | 56 | 240 | 32 | 8-23 | 92 | 69.85 | 4-10.3 | 18.92 | 212 | 8.5 |
| 200 | 238 | 175 | 60 | 295 | 45 | 8-23 | 115 | 88.9 | 4-14.3 | 22.1 | 268 | 25 |
| 250 | 268 | 203 | 68 | 350 | 45 | 12-23 | 115 | 88.9 | 4-14.3 | 28.45 | 325 | 31.4 |
| 300 | 306 | 242 | 78 | 400 | 45 | 12-23 | 140 | 107.95 | 4-14.3 | 31.6 | 403 | 45.9 |
| 350 | 368 | 267 | 78 | 460 | 45 | 16-23 | 140 | 107.95 | 4-14.3 | 31.6 | 436 | 54 |
